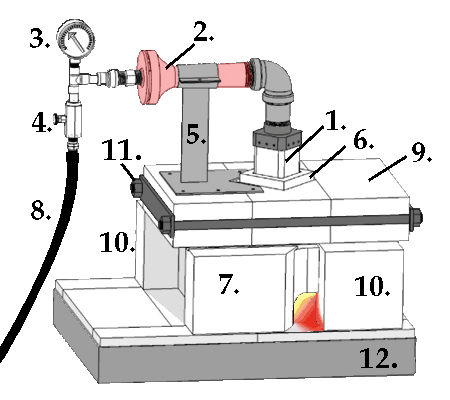

| Parts List |
| 1. |
New 2" Mini-Square Giberson Burner- 13 #7/32 holes ($125.00) or Buy the 2" Mini-Burner Kit: includes the needle valve and gauge, the 2" Mini Square Giberson Head- 13 #7/32 holes, and the Ransome V100 Venturi w #72 Orifice, all for $260.00 |
| 2. |
V-100 Ransome Venturi ($112.50) |
| 3. |
0-30 PSI Gauge 1/4" LM NPT ($16.00) |
| 4. |
Needle Valve, Fine Quality all brass needle valve ($22) |
| 5. |
Burner Brace for Venturi System ($75.00) Not included in kit. |
| 6. |
Burner Block- This is an essential part of the burner system! ($30.00) |
| 7. |
A soft brick shaped to function as a door. You can operate this with your bare hands. |
| 8. |
High Pressure Gas Hose for Propane |
| 9. |
Crown made of 2300 IFB Insulation Bricks, aka, "soft bricks." |
| 10. |
Movable Soft Bricks make up the combustion chamber. Size can change quickly and easily, especially for pass throughs for heating long material. |
| 11. |
Iron Frame System made of thread rod with end bars. |
| 12. |
Base Tray: a metal tray filled with soft bricks |
